X2IPI

Tool box for 2D DC and DC - IP measurements

Compatible with :


Res2dInv software (Geotomo Inc.)
SYSCAL® equipment (Iris Instruments)
Terrameter SAS4000/SAS1000 equipment (ABEM Instrument AB)
Sens2dInv software (Geotomographie)
IPI2win software (Moscow State University)

Overview of the X2IPI tool box

X2IPI allows to perform 5 main tasks with data of  multielectrode measuruments:

To prepare and to modify protocols files [*.seq or *.org] files needed for multielectrode measurements with SYSCAL®  or SAS4000/SAS1000 equipments

To prepare protocol file for the next types of array:

  • Pole-Dipole (forward and reverse)
  • Half Wenner
  • Wenner alpha
  • Wenner beta
  • Wenner-Schlumberger
  • Dipole-dipole
  • Modifying electrodes unit spacing
  • Removing a faulty electrode
  • Removing measurement lines
  • Preparing a “Roll along” [*.seq, *.up, *.dwn] files
  • Changing the numbers of the MULTINODE® used in a [*seq] file, i.e. the hard reference numbers of the electrodes


To work with field data files from  SYSCAL® or SAS4000/SAS1000 equipments and in Res2dInv format:
  • visualization of data,
  • trim outlier measurements,
  • merge data files,
  • remove a faulty electrode,
  • input topography;
To remove "geological noise" linked to near-surface inhomogeneities;

To prepare input files with the convenient formats for interpretation softwares (including new general format for Res2dInv);

To work with results of 2D inversion by Res2dInv.

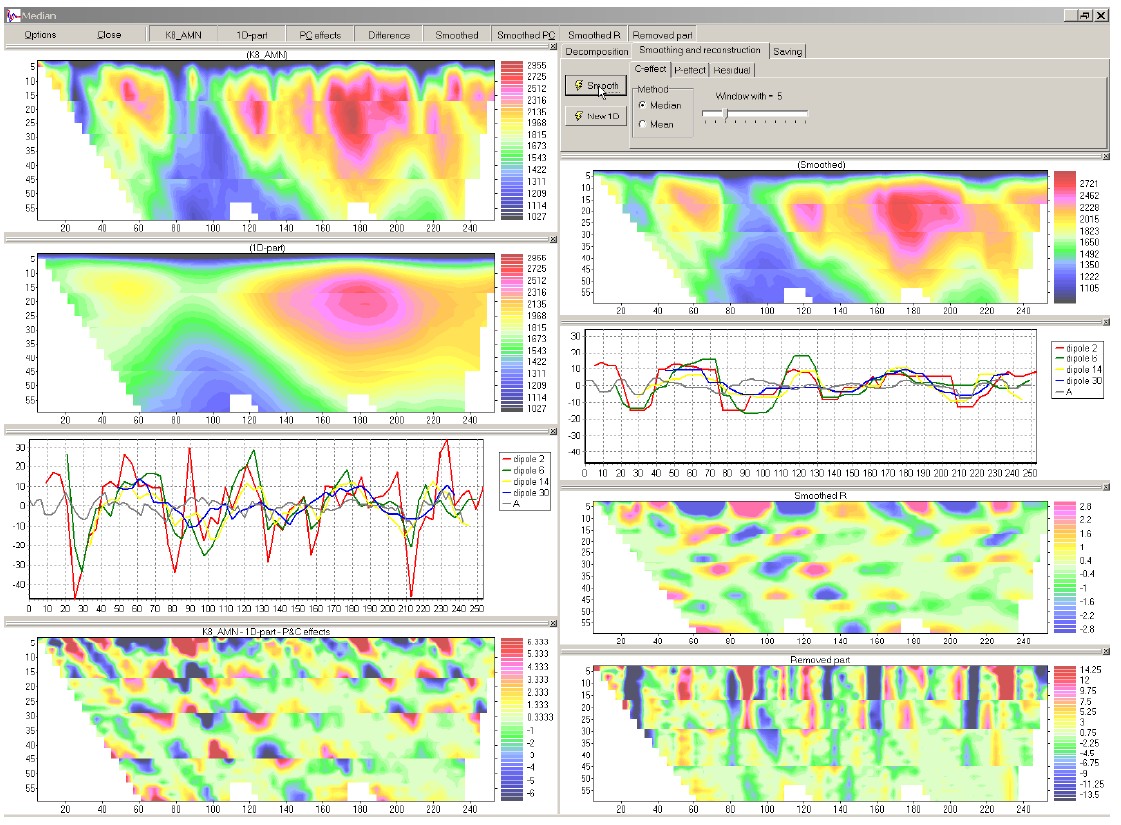

Median window
The median window allows to remove from the pseudosections the “P” and “C” effects linked
to close to surface inhomogeneities.
